Indoor LED Signs

led signs

L.E.D. WINDOW DISPLAYS

Want to catch the eye of the people on the street? Our indoor window displays employ a SUPERBRIGHT L.E.D. matrix that shines from the inside out! The same technology that allows our outdoor signs to be seen from great distances insures that when this sign is placed in your window it will catch the eye of EVERY passer by.

Indoor Window Display
(Case 49.0L" x 4.25D" x 6.25H")
Super-bright Red, 4-inch characters

Pitch
Display
Memory
Display
Dimensions
Wt.
(lbs)
Oper.Temp.
Characters
Displayed
0.57"
28,000
Characters
45.6"x 4.0"x 10.16"
12.25 lbs
32-120 °F
Typical 13, max: 27

INDOOR BRIGHTNESS L.E.D DISPLAYS

Our indoor L.E.D. displays are designed to perform in the business environment. From customer information (to present your most important Point Of Sale information,) to employee messaging (for instant memos, directives and company information,) our signs are the ideal medium. If you have information that you need to know is received, the eye-catching color and motion of an indoor L.E.D. display will ensure that your message is relayed effectively.

Click for more details on each line:

One-Line Indoor Models
Two-Line Indoor Models
Three-Line Indoor Models		 Series 3L Indoor NEMA 4 & 4X LED Signs
Four+ Line Indoor Models

One Line Indoor Models

SERIES 200 DISPLAYS

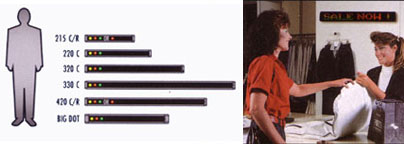

200 Series Sizes

215 Full Matrix
(Case 28.9" x 4.5" x 2.1" ) Red or Tricolor

Pitch
Max.
Viewing
Display
Dimensions
Wt.
(lbs)
Oper.Temp.
Max.
Char./Ht.
0.3"
100'/60m
27"x 2.1"x 4.5"
6 lbs
0-50 C
15 char/2.1"

220 Full Matrix
(Case 37.7" x 3.8" x 2.9 ") Tricolor

Pitch
Max.
Viewing
Display
Dimensions
Wt.
(lbs)
Oper.Temp.
Max.
Char./Ht.
0.3"
100'/60m
37"x 2.9"x 3.8"
7 lbs
0-50 C
20 char/2.1"

SERIES 300 DISPLAYS

320 Full Matrix
(Case 57.4" x 5.5" x 3.8 ") Tricolor

Pitch
Max.
Viewing
Display
Dimensions
Wt.
(lbs)
Oper.Temp.
Max.
Char./Ht.
0.45"
150'/60m
37"x 2.9"x 3.8"
5 lbs
0-50 C
20 char/3.1"

330 Full Matrix
(Case 84.4" x 5.5" x 3.8 ") Tricolor

Pitch
Max.
Viewing
Display
Dimensions
Wt.
(lbs)
Oper.Temp.
Max.
Char./Ht.
0.45"
150'/60m
37"x 2.9"x 3.8"
5 lbs
0-50 C
30 char/3.1"

420 NEMA DISPLAYS

420 NEMA 12 Full Matrix
(Case 71.9" x 7.8" x 5.6") Tricolor

Pitch
Max.
Viewing
Display
Dimensions
Wt.
(lbs)
Oper.Temp.
Max.
Char./Ht.
0.57"
200'/60m
71.9"x 5.6"x 8.0"
40 lbs
0-50 C
20 char/4"

BIG DOT DISPLAYS

Big Dot Full Matrix
(Case 49.0" x 4.25" x 6.25") 8-colors plus Rainbow.

Pitch
Max.
Viewing
Display
Dimensions
Wt.
(lbs)
Oper.Temp.
Max.
Char./Ht.
0.57"
200'/30m
4.0" x 45.6"
12.25 lbs
0-50 C
14 char/4"

Back to top

Two Line Indoor Models

4000 SERIES DISPLAYS

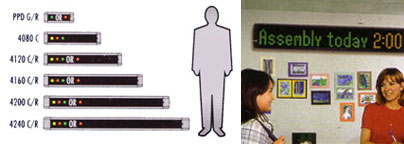

4000 Series Sizes

PPD Line Matrix

(Case 13.7" x 3.5" x 1.84") Red or Green, 120 x 7

Pitch
Max.
Viewing
Display
Dimensions
Wt.
(lbs)
Oper.Temp.
Lines/Height/min. char.
0.1"
close prox.
12" x 1.7"
1.6 lbs
0-50 C
2/0.7"/20


4215C/R Full Matrix
(Case 28.2" x 7.7" x 5.56") Tricolor, 80 x 16
Also available in Brilliant RED

Pitch
Max.
Viewing
Display
Dimensions
Wt.
(lbs)
Oper.Temp.
Lines/Height/min. char.
0.3"
up to 240 ft.
24" x 4.8"
15 lbs
0-50 C
1/4.8"/8 or 2/2.1"/13

4222C/R Full Matrix
(Case 40.2" x 7.7" x 5.56") Tricolor, 120 x 16
Also available in Brilliant RED

Pitch
Max.
Viewing
Display
Dimensions
Wt.
(lbs)
Oper.Temp.
Lines/Height/min. char.
0.3"
up to 240 ft.
38" x 4.8"
24 lbs
0-50 C
1/4.8"/12 or 2/2.1"/20

4230C/R Full Matrix
 Best Seller!
(Case 52.2" x 7.7" x 5.56") Red or Tricolor, 160 x 16
Also available in Brilliant RED

Pitch
Max.
Viewing
Display
Dimensions
Wt.
(lbs)
Oper.Temp.
Lines/Height/min. char.
0.3"
up to 240 ft.
48" x 4.8"
24 lbs
0-50 C
1/4.8"/16 or 2/2.1"/26

4237C/R Full Matrix
(64.2" x 7.7 " x 5.56") Red or Tricolor, 200 x 16 also available in Brilliant RED

Pitch
Max.
Viewing
Display
Dimensions
Wt.
(lbs)
Oper.Temp.
Lines/Height/min. char.
0.3"
up to 240 ft.
60" x 4.8"
28 lbs
0-50 C
1/4.8"/20 or 2/2.1"/33

4244C/R Full Matrix
(Case 76.2" x 7.7 " x 5.56") Red or Tricolor, 240 x 16
also available in Brilliant RED

Pitch
Max.
Viewing
Display
Dimensions
Wt.
(lbs)
Oper.Temp.
Lines/Height/min. char.
0.3"
up to 240 ft.
72" x 4.8"
32 lbs
0-50 C
1/4.8"/24 or 2/2.1"/40

Back to top

Three Line Indoor Models

3L SERIES DISPLAYS

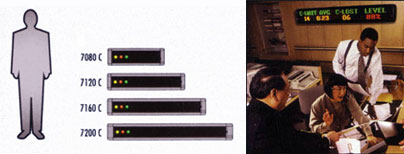

7000 Series Sizes


3L20C Full Matrix
(Case 28.3" x 10" x 5.6") Tricolor

Max. Viewing
Display
Dimensions
Wt.
(lbs)
LED Array
Lines/Height/Chars.
350 ft./100m
24" x 7.2"
15 lbs
80 x 24
1 line/7.2"/8 Char.
2 line/3.0"/13 Char.
3 line/2.1"/13 Char.
4 line/1.5"/16 Char.


3L40C Full Matrix
(Case 40.2" x 10" x 5.4") Tricolor

Max. Viewing
Display
Dimensions
Wt.
(lbs)
LED Array
Lines/Height/Chars.
350 ft./100m
36" x 7.2"
20 lbs
120 x 24
1 line/7.2"/12 Char.
2 line/3.0"/20 Char.
3 line/2.1"/20 Char.
4 line/1.5"/24 Char.

3L52C Full Matrix
(Case 52.2" x 10" x 5.4") Tricolor

Max. Viewing
Display
Dimensions
Wt.
(lbs)
LED Array
Lines/Height/Chars.
350 ft./100m
48" x 7.2"
26 lbs
160 x 24
1 line/7.2"/12 Char.
2 line/3.0"/20 Char.
3 line/2.1"/20 Char.
4 line/1.5"/24 Char.


3L64C Full Matrix
(Case 64.2" x 10" x 5.4") Tricolor

Max. Viewing

Display
Dimensions
Wt.
(lbs)
LED Array
Lines/Height/Chars.
350 ft./100m
60" x 7.2"
26 lbs
200 x 24
1 line/7.2"/20 Char.
2 line/3.0"/33 Char.
3 line/2.1"/33 Char.
4 line/1.5"/40 Char.

Back to top

Series 3L Indoor NEMA 4 and 4X LED Signs

NEMA 12 case option = all aluminum
NEMA 4 case option = all steel
NEMA 4X case option = all stainless steel


7120 Full Matrix, (Case 40.2" x 10" x 5.4") Tricolor


7160 NEMA Full Matrix, (Case 52.2" x 10" x 5.4") Tricolor


7200 NEMA Full Matrix, (Case 64.2" x 10" x 5.4") Tricolor

Back to top

4 Line Plus Indoor Models

9000 SERIES DISPLAYS

led signs
  • Tricolor, Ethernet-ready LED displays
  • Built-in speakers w/volume control, ext. speaker jack.
  • Supports Graphics
  • Currently used in retail, service, factories, warehouses.

led signs

AVAILABLE IN 5, 5-LINE MODELS:

led sign specs

Model 9L28C
80 x 32 pixels
Also available in Brilliant RED

Max. Viewing
Display
Dimensions
Wt.
(lbs)
LED Array
Lines/Height/Chars.
350 ft./100m
24"L x 9.6"H
18 lbs.
80 x 32 pixels

1 line: 9.6" / 24.38 cm
2 line: 4.5" / 11.43 cm
3 line: 3" / 7.6 cm
4 line: 2.1" / 5.3 cm
5 line: 1.5" / 3.8 cm

led picture

Model 9L40C
120 x 32 pixels
Also available in Brilliant RED

Max. Viewing
Display
Dimensions
Wt.
(lbs)
LED Array
Lines/Height/Chars.
350 ft./100m
36"L x 9.6"H
23 lbs.
120 x 32 pixels

1 line: 9.6" / 24.38 cm
2 line: 4.5" / 11.43 cm
3 line: 3" / 7.6 cm
4 line: 2.1" / 5.3 cm
5 line: 1.5" / 3.8 cm

led 9160

Model 9L52C
160 x 32 pixels
Also available in Brilliant RED

max. Viewing
Display
Dimensions
Wt.
(lbs)
LED Array
Lines/Height/Chars.
350 ft./100m
48"L x 9.6"H
31 lbs.
160 x 32 pixels

1 line: 9.6" / 24.38 cm
2 line: 4.5" / 11.43 cm
3 line: 3" / 7.6 cm
4 line: 2.1" / 5.3 cm
5 line: 1.5" / 3.8 cm

led 9200

Model 9L64C
200 x 32 pixels
Also available in Brilliant RED

max. Viewing
Display
Dimensions
Wt.
(lbs)
LED Array
Lines/Height/Chars.
350 ft./100m
60"L x 9.6"H
36 lbs
200 x 32 pixels

1 line: 9.6" / 24.38 cm
2 line: 4.5" / 11.43 cm
3 line: 3" / 7.6 cm
4 line: 2.1" / 5.3 cm
5 line: 1.5" / 3.8 cm

led 9240c

Model 9L76C
240 x 32 pixels
Also available in Brilliant RED

max. Viewing
Display
Dimensions
Wt.
(lbs)
LED Array
Lines/Height/Chars.
350 ft./100m
72"L x 9.6"H
41 lbs
240 x 32 pixels

1 line: 9.6" / 24.38 cm
2 line: 4.5" / 11.43 cm
3 line: 3" / 7.6 cm
4 line: 2.1" / 5.3 cm
5 line: 1.5" / 3.8 cm

ALPHAVISION

led signs

Character Matrix
  • 1.4 or 2.1-inch Characters
  • Tricolor, Superbright red and red
  • Text-only Messages
  • Viewing distance up to 100 feet
Full Matrix
  • Minimum 2.1inch Characters
  • Tricolor Text and Graphic Display
  • Viewing distance starting at 100 feet
  • Standard and NEMA enclosures
  • Programmable Alpha Software
  • Networkable via RS232, RS485, and Ethernet adapter (optional)

led signs

Director
  • Oak /1.4" /8x16
  • Aluminum /1.4" /8x16
  • Aluminum /1.4" / 8x24
    •
  • Bank or hotel lobby point of purchase information
  • Event and conference room scheduling
  • Activities/events board - Front office greetings
  • Personnel In/Out - Employee announcements
  • Wireless IR Remote Control
  • PC-controlled with Alphanet Software

LED ClockSerial Clock

  • Case: 13.5"x7.1"x2.2"
  • Network RS485 serial connection
  • Characters: 4
  • Synchronized clocks
  • Multiple time zone support
led signs
